Round bar collet capacity 1-5/8" Ø
Maximun lentght 3.5’’
Maximun Feed lenght at 240 RPM 2.5’’
Maximun feed length at 120 PRM 4 ‘’
Spindle speed range 14 to 2906 RPM
Drive sleeve speed 240 or 120 RPM
Feed cycle time at 240 RPM 0.5 sec
Feed cycle time at 120 RPM 1 sec
Spindle Motor HP: 7.5 Hp
Number of First Speeds: 17
Number of Second Speeds for Each First Speed: 10
Number of Thirds Speeds for Each First Speed: 15
Number of Fourth Speeds for Each First Speed: 150

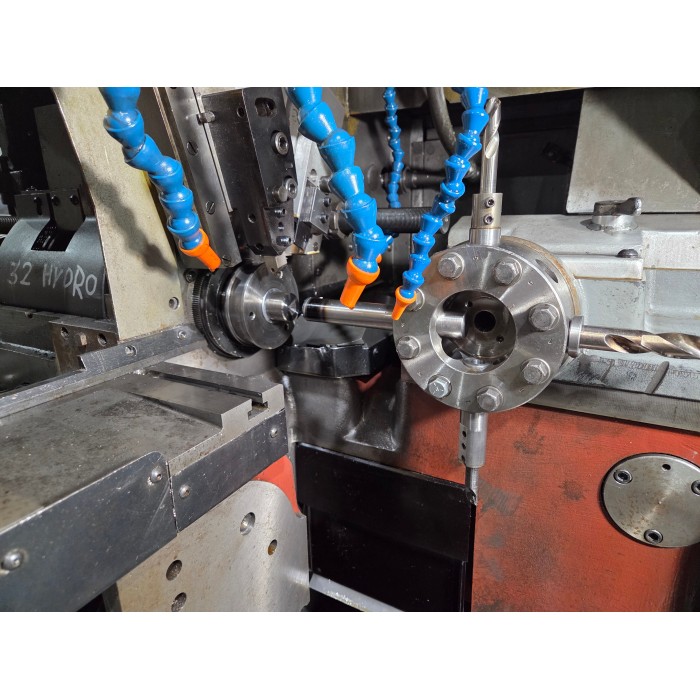

Number of Turret Holes: 8
Diameter of Holes: 1″
Cross Slides: 2 Upper vertical , 2 Lower (horizontal)
Camac Accelerator
Present electrical arrangement 230/3/60
Electric transformer with 600V 3-phase input available as an optional extra
Change speed and feed gears

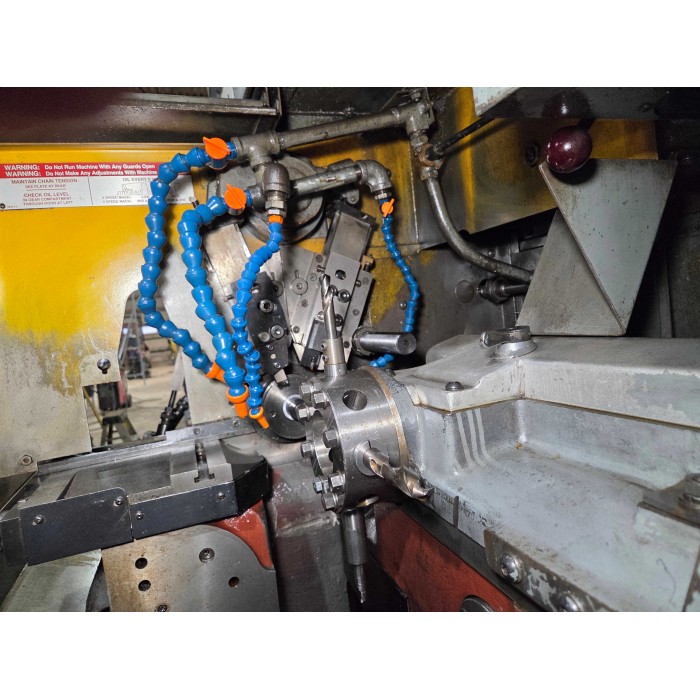

Internal coolant system with chip/splash guards

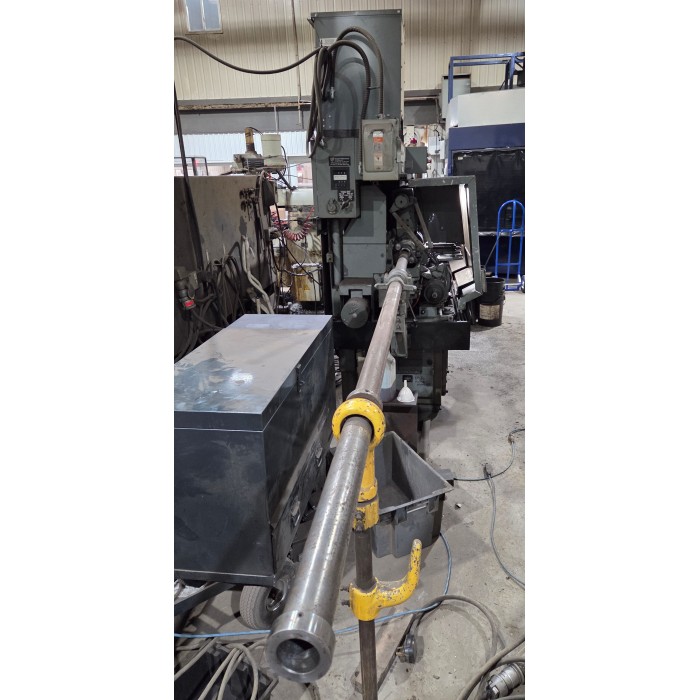

Stock stand and tube
Shipping Weight approx: 7,000 Lbs
Appriximative machine dimensions 95" X 52" X 78"high

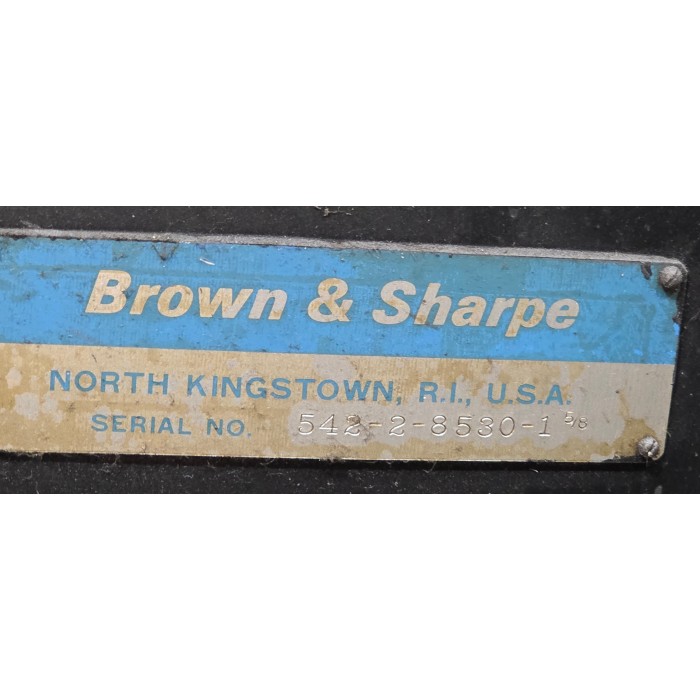

S/N 542-2-8530
It was purchased used in 2021, and the seller described it as having had only one previous owner and non-production machine.
We used it for about 500 hours, but we no longer need it because the part we were manufacturing is now sourced from Asia.
It is in very good condition and shows no signs of significant wear.
For further information, please contact us by email at mblais@fabricationmb.com
Preliminary specifications subject to verification or change

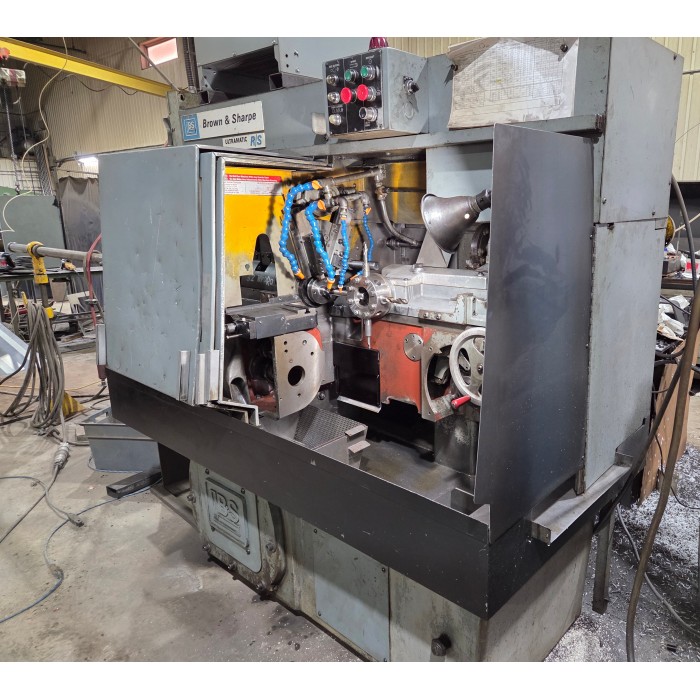

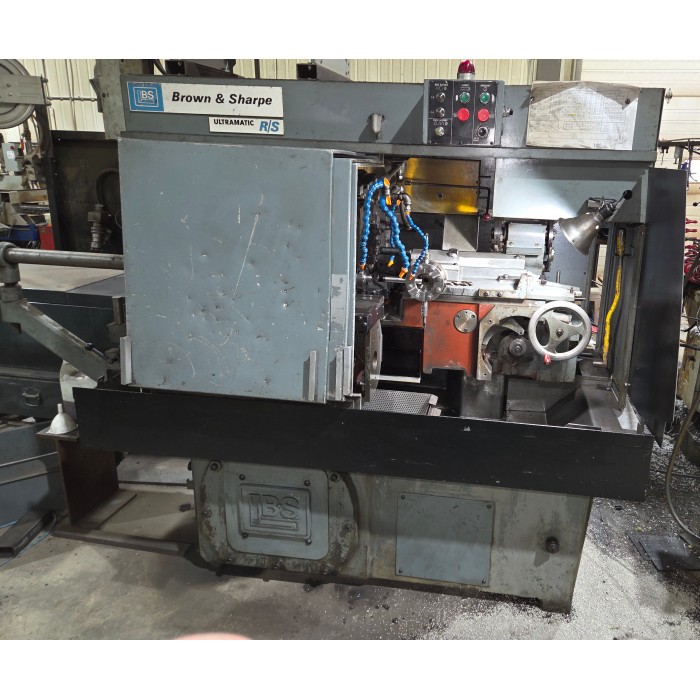

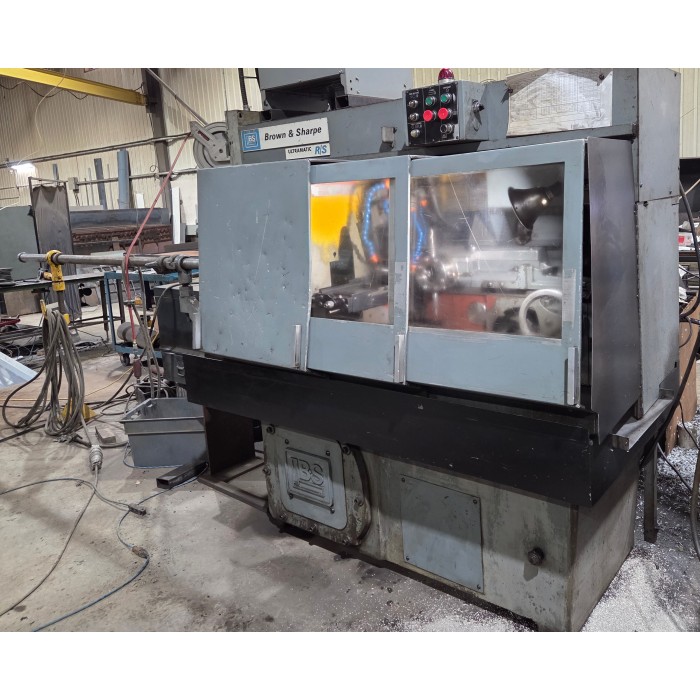

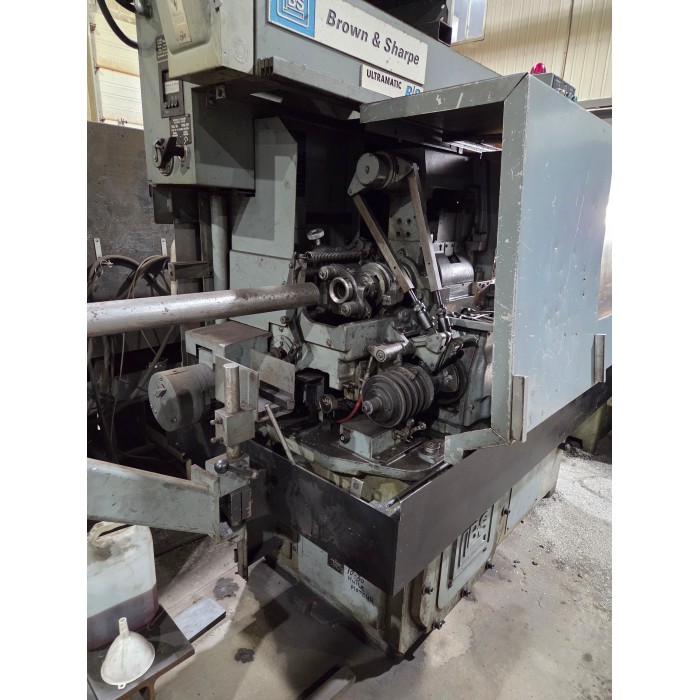

Balises: 1-5/8" BROWN & SHARPE #2 ULTRAMATIC R/S 4 SPEED AUTOMATIC SCREW MACHINE
